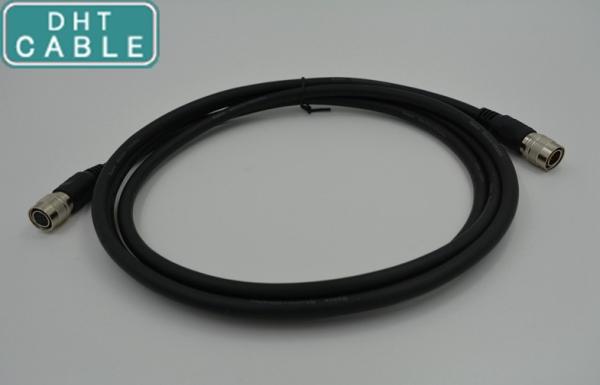

High Flex Analog Video Hirose Cable , PVC Molded 2 Meters Male To Female Cable

Brand Name : DHT

Model Number : CCXC-02SR

Certification : CE/ROHS/FCC/SGS

Place of Origin : China

MOQ : 1

Price : negotiation

Payment Terms : T/T or western Union

Supply Ability : 300,000pcs per month

Delivery Time : 5~7days

Packaging Details : PE

Product Name : Camera Link cable

Application : CCD camera

Cable Length : 2.0 meters

Interface : HR10A-10R-12R

Connector : HR10A-10P-12S

Feature : High Flex,Chain flex

Standard : CE/ROHS/FCC/SGS

type : PVC molded

Contact Now

CCXC Analog Video Hirose Cable Assemblies Male to Female CCXC-12P02N 2meters



Description



The CCXC-12P02N is a 2 meter 12-pin interconnect cable, compatible the Hitachi C201-KSM and Intercon VCP-02-S cables.This is robust cable can be used in Chain equipment.

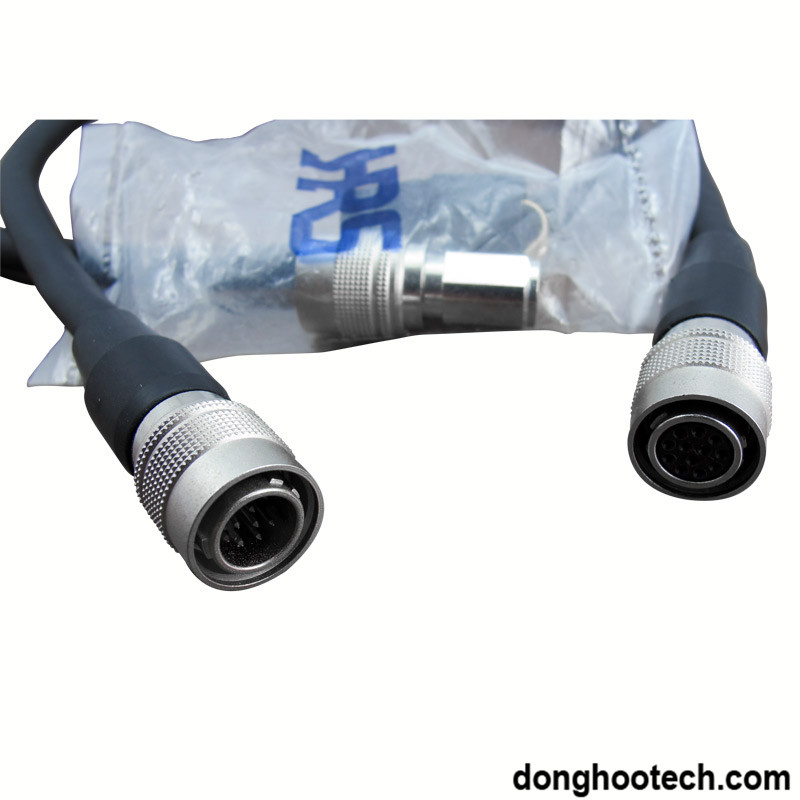

The 12-pin Male/Female Camera Interconnect Cable with molded HR10A-10P-12S and HR10A-10P-12P(73) connector is manufactured by DHT and is 100% compatible with 12-pin camera for Hitachi, Sony, Uniq, and Pulnix cameras ect.

Hitachi Part No. C 102 KS
Sony Part No. CCXC-12P02N


Features

  1. 100% compatible with 12-pin camera
  2. Interconnect cables
  3. Shielded
  4. 12pin Male/Female
  5. For industrial application only.
  6. OEM service is available



Standard Pin To Pin

  1. GND
  2. +12 VDC
  3. VIDEO GND
  4. VIDEO OUTPUT
  5. GND
  6. HD SYNC INPUT
  7. VD SYNC INPUT OR TRIGGER
  8. GND
  9. AUX SIGNAL
  10. AUX SIGNAL
  11. TRIGGER INPUT
  12. GND

Specifications:



Physical

Cable Color

Black

Connector

HR10A-10P-12S

Jacket Material

PVC

Shell Material

Polyester Elastomer

Shell Color

Black

Shell Construction

Pre mold in Poly Ethelene wrapped 360

degrees with copper tape terminated to shield,

overmolded in black PVC.

Cable construction

24AWG*12C+DRAIN+AL/MAYLOR OD6.5MM BLACK PVC JACKET UL2464

Electrical





Voltage Rating

DC 300V 0.08sec

Current Rating

1A

Insulation Resistance

20 Mohm MIN

Dielectric Test

3ohm Max

Temperature Rating

- 20 to +75 Celsius degree



Applications:



Indutrial Camera

DALSA,BASLER,SONY,COGNEX,CORECO,ADIMEC,EURESYS,JAI,IMPMEX,MATROX,

DTA,PULNIX,EVISION,PLEORA,TOSHIBA TELI,NATIONALINSTRUMENT,REDLAKE,UNIQ,IDT,DVC,SILICONIMAGING,OMRON,PELCO,

SENTECH,EPIX……

Imaging frame grabber

SONY,CORECO,EPIX,EURESYS,FORESIGHT,MATROX,EVISION,NATIONAL INSTRUMENT……

Machine vision

For all Camera Link standard interface

Equipment Systems

Automatic Optical Inspection system(AOI), Mould monitor, Robot device,Machine Arms,Medical Equipment,Factory Equipment……
